Thermistor Sensor

WT2

Standard water temperature sensor for home appliances

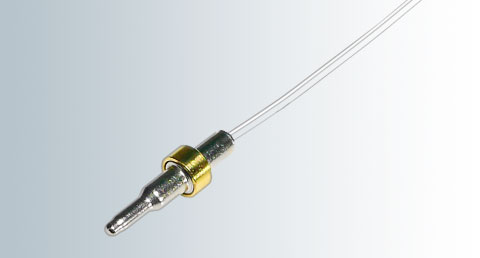

WT2

WT2

Sensing part: stainless steel
Wire: cross-linked fluororubber

Features

  • Highly durable
  • Covers the whole water temperature range
Applications Water heaters, heat pump water heaters and coffee makers (water); bidets (instant inlet water)
Operating temperature -20 to +120℃ (except connector)
Thermal time constant τ ≤ 1 sec. (in stirred water)
Response time to 90% Approx. 2 sec. (in stirred water)
Dissipation constant δ ≒ 4.8mW/℃ (in stirred water)
Withstand voltage 750VAC for 1 sec.
Consultation up to 1800VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R50 = 3.485kΩ Other options available
B constant B0/100 = 3450K Other options available

* Values in the above table are for reference only.
