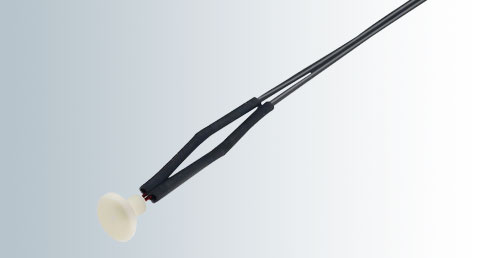

Thermistor Sensor
KN4
Ceramic casing: standard
Sensing part: ceramics
Wire: cross-linked PE, silicone rubber insulated with glass braid, fluorocarbon, silicone rubber
Other options available
Features
- High insulation property and excellent resistance to pressure
- A ceramic case provides high insulation and a shape securing mountability
| Applications | IH cooking devices and IH rice cookers (surface) |
|---|---|
| Operating temperature | -20 to +300℃ (only for the sensing surface) |
| Thermal time constant | τ ≒ 7 sec. (on an aluminium plate at 100℃） |
| Dissipation constant | δ ≒ 3mW/℃ |
| Withstand voltage | 5000VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | R100 = 3.3kΩ |
| B constant | B0/100 = 3970K |
* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
