Thermistor Sensor

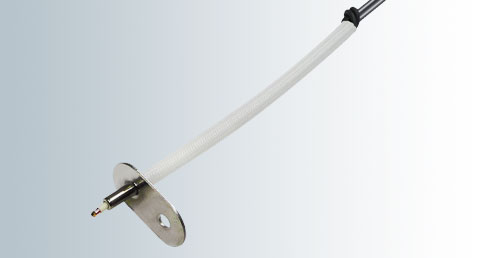

OCK3

Multi-detection with high sensitivity and response

Sensitivity and response is compared to other Shibaura flange type sensors

OCK3

OCK3

Sensing part: stainless steel
Wire: cross-linked PE, silicone rubber,
silicone rubber insulated with glass braid
Other options available

Features

  • A multi-detector for temperature, vapor and air flow speed
Applications Microwave oven chambers (air & vapor); heaters and air cleaners (inside ambient)
Operating temperature -20 to +260℃ (from the tip of protection tube to the flange)
Thermal time constant τ ≒ 10 sec. (on an aluminium hot plate)
Dissipation constant δ ≒ 1.2mW/℃
Withstand voltage 1200VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R200 = 1kΩ Other options available
B constant B100/200 = 4537K Other options available

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
