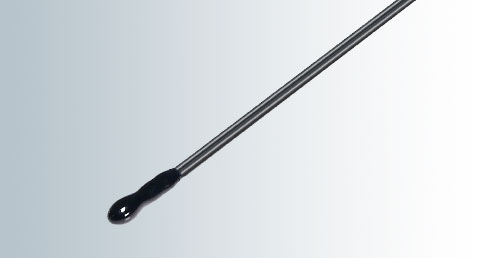

Thermistor Sensor
EE1
Using a glass-encapsulated thermistor element
Sensing part: epoxy resin
Wire: cross-linked PE parallel, PVC parallel, cross-linked PE double-insulated, PVC double-insulated
Features
- A glass-encapsulated thermistor element is sealed with epoxy resin
- Applicable to a wide temperature range
| Applications | Air conditioners (room and outdoor air); automobile air conditioners & heaters (ambient); water heater tanks (surface) |
|---|---|
| Operating temperature | -30 to +100℃ |
| Thermal time constant | τ ≒ 5 sec. (in stirred water) |
| Dissipation constant | δ ≒ 2.2mW/℃ |
| Withstand voltage | 1200VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | Optional |
| B constant | Optional |
*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
