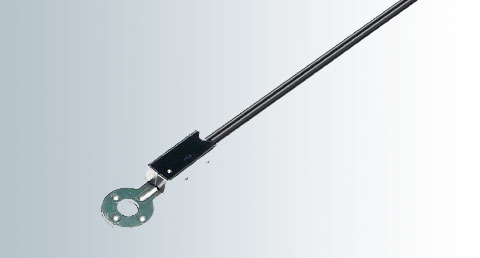

Thermistor Sensor
EP2
Enhanced insulation: using a glass-encapsulated thermistor element
Sensing part: aluminium
Wire: cross-linked PE parallel, PVC parallel
Features
- A glass-encapsulated thermistor element is sealed into a lug terminal
- Applicable to a wide temperature range
| Applications | Automobile battery chargers, air conditioner outdoor units and heatsinks (surface) |
|---|---|
| Operating temperature |
-30 to +120℃ |
| Thermal time constant | τ ≒ 13 sec. (on an aluminium hot plate) |
| Dissipation constant | δ ≒ 2.3mW/℃ |
| Withstand voltage | 1200VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | Optional |
| B constant | Optional |
*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
