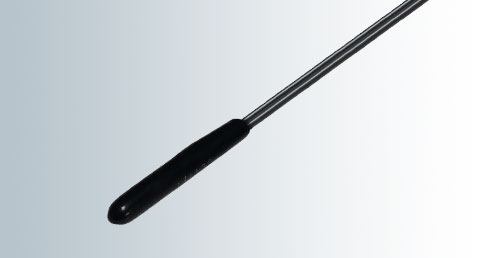

Thermistor Sensor

CC1

Applicable to long wire, available in small volumes

CC1

CC1

Sensing part: PVC
Wire: PVC parallel, PVC double-insulated, PVC circular

Features

  • A glass-encapsulated thermistor element is integrated with wires using a PVC cap
Usage Examples Air conditioner indoor units,All-in-one Washer-dryers,Refrigerators,freezer display casesのTemperature detection
Usage temperature range -30~+80℃
Thermal Time Constant τ≒13 sec. (in stirred water)
Thermal Dissipation Constant δ≒2mW/℃
Insulation resistance AC.1200V 1 sec.
Insulation Resistance ≥100MΩ at 500VDC
Resistance *Supports a range of characteristics
B Constant *Supports a range of characteristics

*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
