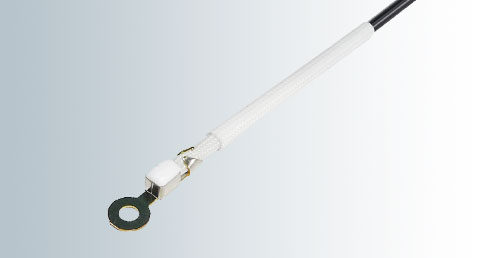

Thermistor Sensor
RTZ1
High heat resistance and fast response
Heat resistance and response are compared to other Shibaura sensors equipped with a lug terminal
Sensing part: plated brass
Wire: fluorocarbon, silicone rubber,
silicone rubber insulated with glass braid, cross-linked PE,
cross-linked PE parallel, PVC, PVC parallel
Features
- Sensor with a lug terminal, exhibiting fast response and high heat resistance
| Applications | Hot plates for cooking devices and automobile braking systems (surface) |
|---|---|
| Operating temperature | -20 to +300℃ |
| Thermal time constant | τ ≒ 3 sec. (on an aluminium plate at 100℃) |
| Dissipation constant | δ ≒ 2.5mW/℃ |
| Withstand voltage | 500VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | Optional |
| B constant | Optional |
* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
