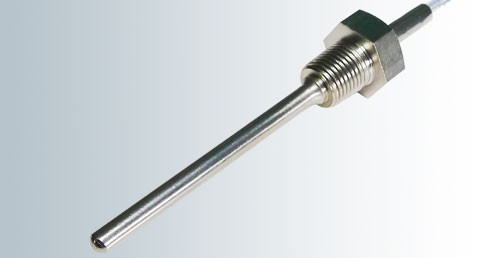

Thermistor Sensor
MPM1
Water proof solution equipped with a stainless protection tube
Sensing part: stainless steel
Wire: cross-linked PE, PVC, fluorocarbon
Features
- Superior in mechanical strength with a combination of a stainless protection tube and a glass-encapsulated thermistor element
- Has a water-sealed thermistor element (using PTFE only for thermistor element lead wires)
- Longer protection tubes than NTN1
- Customizable dimensions
| Applications | Hot water boiler tanks and medical equipment (water); machine tool oil (oil) |
|---|---|
| Operating temperature | -20 to +150℃ |
| Thermal time constant | τ ≒ 20 sec. (in stirred water) |
| Dissipation constant | δ ≒ 1.5mW/℃ |
| Withstand voltage | 1000VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | Optional |
| B constant | Optional |
* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
