Thermistor Sensor

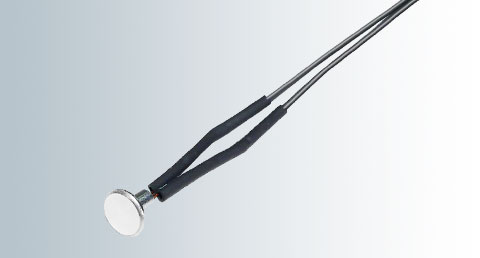

KN1

Aluminium casing:
fast response

Response is compared to other Shibaura surface temperature sensors

KN1

KN1

Sensing part: aluminium
Wire: cross-linked PE, silicone rubber insulated with glass braid, fluorocarbon, silicone rubber
Other options available

Features

  • Fast response solution with low cost design
Applications IH cooking devices and rice cookers (surface)
Operating temperature -20 to +300℃
Thermal time constant τ ≒ 0.7 sec. (on an aluminium plate at 100℃)
Dissipation constant δ ≒ 2mW/℃
Withstand voltage 1800VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R100 = 3.3kΩ
B constant B0/100 = 3970K

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
