Thermistor Sensor

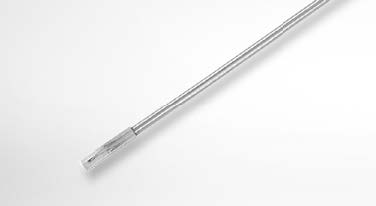

MP3

Heat, oil and solvent proof

MP3

MP3

Sensing part: fluorocarbon
Wire: fluorocarbon

Features

  • Excellent in heat, oil and solvent resistance with fluorocarbon sealing
  • Fixing bracket design is available
  • Temperature detection on surface with flat type sensor
Applications EV/HV motor coilsTemperature detection
Operating temperature -40~+200℃
Thermal time constant τ≒4sec. (in stirred liquid)
Dissipation constant δ≒1.2mW/℃
Withstand voltage AC.1200V 1sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R200℃=1kΩ Other options available
B constant B25/50=2240K Other options available

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
