Thermistor Sensor

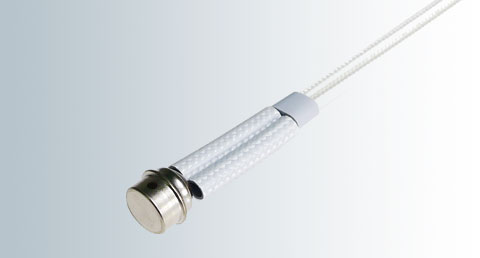

HT1

Fast response

Response is compared to other Shibaura hermetic type sensors

HT1

HT1

Sensing part: iron alloy
Wire: fluorocarbon, silicone rubber insulated with glass braid,
cross-linked PE, PVC
Other options available

Features

  • Robust casing and fast response
  • Hermetic type standard surface temperature sensor
Applications Electric pots, dishwashers, hot plates and IH grill pans (surface)
Operating temperature -20 to +180℃ (except connector)
Thermal time constant τ ≒ 4 sec. (on an aluminium hot plate at 100℃)
Dissipation constant δ ≒ 3mW/℃
Withstand voltage 1800VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R100 = 3.3kΩ Other options available
B constant B0/100 = 3970K Other options available

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
