Thermistor Sensor

CS1

Heat and oil proof

CS1

CS1

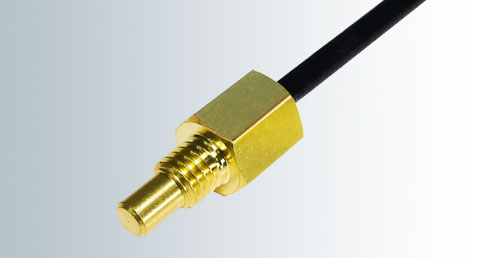

Sensing part: brass Wire: fluorocarbon

Features

  • Epoxy resin-sealed into a cut protection tube
  • Highly heat and oil resistant epoxy resin
Applications Automobile engines (solid), engine oil (oil), radiators (water)
Operating temperature -30 to +150℃
Thermal time constant τ ≤ 5 sec. (in stirred liquid)
Dissipation constant δ ≒ 5.2mW/℃
Withstand voltage 1200VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance Optional
B constant Optional

*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
