Thermistor Sensor

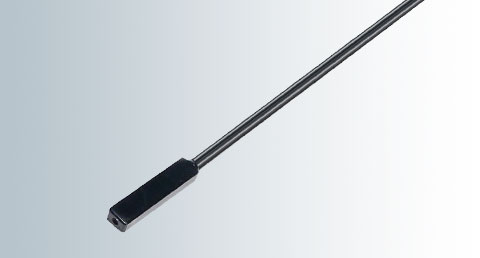

CE2

Mountable in a narrow space

CE2

CE2

Sensing part: plastics
Wire: PVC parallel

Features

  • Equipped with a square resin protection tube, assuming the sensor to be mounted in a narrow space
Applications Toilet seats and lithium-ion batteries (surface)
Operating temperature -20 to +90℃
Thermal time constant τ ≒ 3.5 sec. (in stirred water)
Dissipation constant δ ≒ 1.5mW/℃
Withstand voltage 600VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance Optional
B constant Optional

*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
