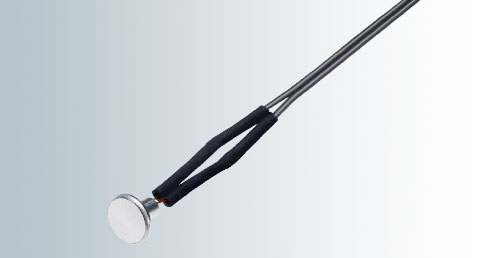

Thermistor Sensor
KN2
Aluminium casing: standard
Sensing part: aluminium
Wire: cross-linked PE, silicone rubber insulated with glass braid, fluorocarbon, silicone rubber
Other options available
Features
- Surface temperature sensing solution with low cost designSurface temperature sensing solution with low cost design
| Applications | IH cooking devices (surface) |
|---|---|
| Operating temperature | -20 to +300℃ |
| Thermal time constant | τ ≒ 4 sec. (on an aluminium plate at 100℃） |
| Dissipation constant | δ ≒ 3mW/℃ |
| Withstand voltage | 1000VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | R100 = 3.3kΩ |
| B constant | B0/100 = 3970K |
* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
