Thermistor Sensor

RT2

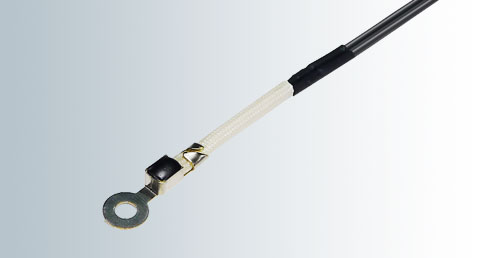

Standard sensor equipped with a lug terminal having high heat resistance

Heat resistance is compared to other Shibaura sensors equipped with a lug terminal

RT2

RT2

Sensing part: plated brass
Wire: fluorocarbon, silicone rubber,
silicone rubber insulated with glass braid,
cross-linked PE,
cross-linked PE parallel, PVC, PVC parallel
Other options available

Features

  • High heat resistance, fast response and designed for assemblability
Applications Automobile inverters, water heater tanks and heat pump water heaters (surface)
Operating temperature -20 to +180℃
Thermal time constant τ ≒ 6 sec. (on an aluminium plate at 100℃)
Dissipation constant δ ≒ 2.5mW/℃
Withstand voltage 1250VAC for 1 min. or 1500VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance R100 = 3.3kΩ Other options available
B constant B0/100 = 3970K Other options available

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
