Thermistor Sensor

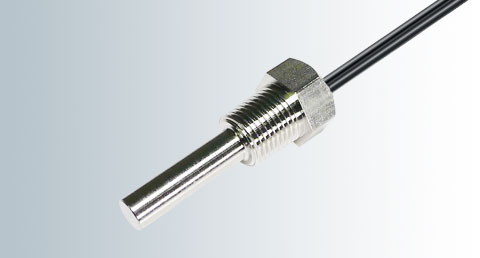

NTN1

Equipped with a customizable cut protection tube

NTN1

NTN1

Sensing part: stainless steel, brass
Wire: heatproof PVC parallel, cross-linked fluororubber, PVC, Fluorocarbon

Features

  • Standard sensor equipped with a cut nipple protection tube
  • Excellent mechanical strength and humidity resistance with a glass-encapsulated thermistor element sealed in a stainless steel protection tube
  • Customizable dimensions
Applications Hot water boiler tanks and medical equipment (water);
machine tool oil (oil); freezing machines (solid, water) and heat exchangers (solid)
Operating temperature -20 to +105℃
Thermal time constant τ ≒ 5 sec. (in stirred water)
Dissipation constant δ ≒ 3.5mW/℃
Withstand voltage 1000VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance Optional
B constant Optional

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
