Thermistor Sensor

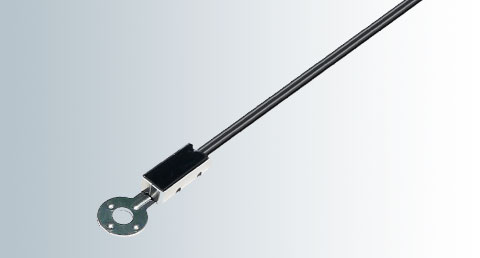

KTEP1

Enhanced insulation: using a bare thermistor chip

KTEP1

KTEP1

Sensing part: aluminium
Wire: cross-linked PE parallel, PVC parallel

Features

  • A bare thermistor chip is sealed into a lug terminal
  • Lower cost than using a glass-encapsulated thermistor element
Applications Heatsinks (surface); printer & multi-function printer chambers (ambient)
Operating temperature -30 to +85℃
Thermal time constant τ ≒ 20 sec. (on an aluminium hot plate)
Dissipation constant δ ≒ 5.5mW/℃
Withstand voltage 1200VAC for 1 sec.
Insulation resistance ≥100MΩ at 500VDC
Resistance Optional
B constant Optional

* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
