NSII-E3 Thermistor

A highly reliable thermistor having enhanced mechanical strength and a reduced size

The NSⅡ-E3 has remarkably improved insulation and mechanical strength with its lead wire outlets mechanically enhanced with ceramics. Suitable for use in humid places. It has been developed by downsizing to the PSB-S3 while keeping the merits of the NSⅡ-E1.

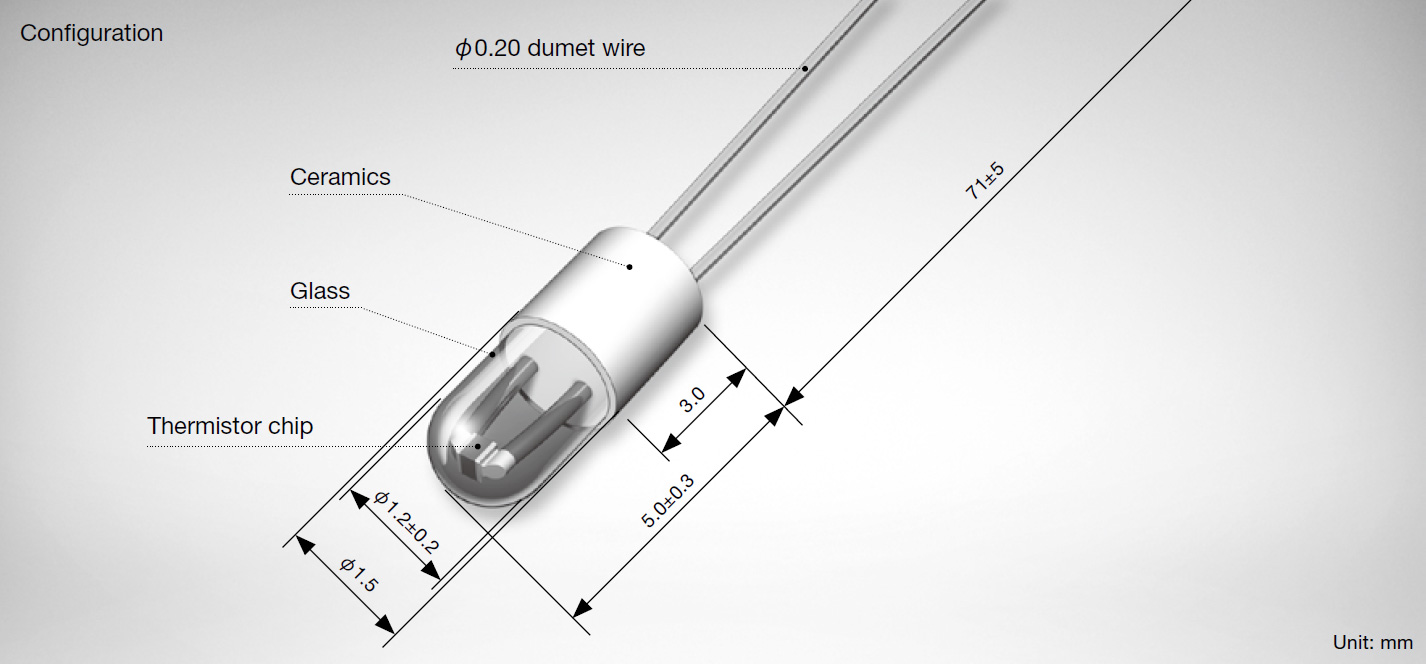

NSII-E3 Thermistor


  • Chip with gold electrodes
  • Reinforced glass end with high strength ceramics
  • Downsized equivalent to the PSB-S3
  • Reduced damage to the glass during stress-giving processing
  • Improved moisture resistance secured with enough creepage distance between the lead wires
  • Long-term stability in resistance
  • High-volume supply in high quality by integrated automatic production

Suitable for equipment requiring moisture resistance, mechanical strength and also a faster response than the NSⅡ-E1

  • Water heaters
  • Dish dryers
  • Tumble dryers
  • Bidets
  • Coffer makers
Max. operating temperature 300℃
Thermal time constant Approx. 10 sec.
Dissipation constant Approx. 1.2mW/℃
Insulation resistance Min. 10MΩ at 50VDC

*Unless otherwise stated, all thermal time constants and dissipation constants are measured in still air.

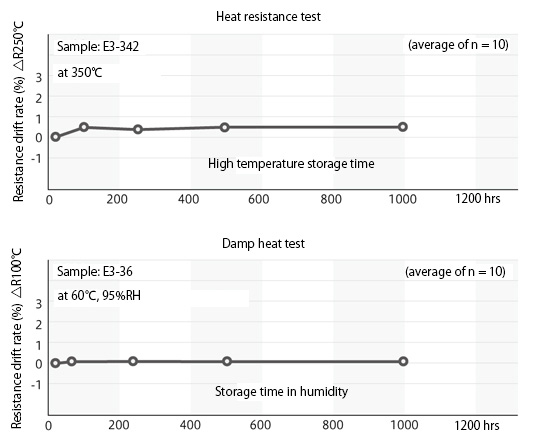

Reliability data

Reliability data
