Thermistor Element

KG2 Thermistor

A highly reliable surface mount thermistor

The KG is a highly reliable thermistor that has been developed in response to customer needs. A square glass and headed metal electrodes bring virtually no change for the KG through its lifetime. In addition, the KG provides excellent solderability and mountability.

KG2 Thermistor

Features

  • Metal electrodes for soldering
  • Excellent solder wettability with tin-plated electrodes
  • High-level heat resistance and environmental stability secured by glass encapsulation
  • Excellent solder dip resistance
  • The square glass prevents deviation or falling off while being mounted
Applications

Suitable to be used in a narrower space

  • Applications requiring high reliability where general-purpose chip thermistors cannot meet
  • Overheat prevention for industrial motors
  • Temperature assurance for IGBT units
  • Temperature assurance for surface mount electric/electronic parts
Operating temperature -50 to +200℃
Thermal time constant Approx. 5 sec.
Dissipation constant Approx. 1.3mW/℃
Solder dip resistance 3 sec. at 350℃

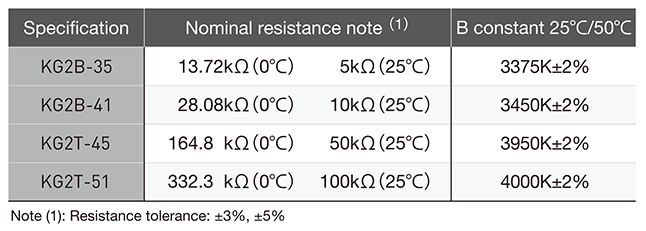

*Unless otherwise stated, all thermal time constants and dissipation constants are measured in still air.

Reliability data

Reliability data

Resistance-temperature characteristics

Resistance-temperature characteristics
