Thermistor Element
KG3 Thermistor
A highly reliable surface mount thermistor
The KG is a highly reliable thermistor that has been developed in response to customer needs. A square glass and headed metal electrodes bring virtually no change for the KG through its lifetime. In addition, the KG provides excellent solderability and mountability.
Features
- Metal electrodes for soldering
- Excellent solder wettability with tin-plated electrodes
- High-level heat resistance and environmental stability secured by glass encapsulation
- Excellent solder dip resistance
- The square glass prevents deviation or falling off while being mounted
Applications |
Suitable to be used in a narrower space
|
---|---|
Operating temperature | -50 to +200℃ |
Thermal time constant | Approx. 10 sec. |
Dissipation constant | Approx. 1.4mW/℃ |
Solder dip resistance | 3 sec. at 350℃ |
*Unless otherwise stated, all thermal time constants and dissipation constants are measured in still air.

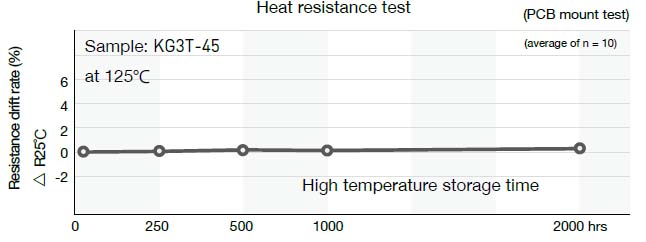

Reliability data
Resistance-temperature characteristics
