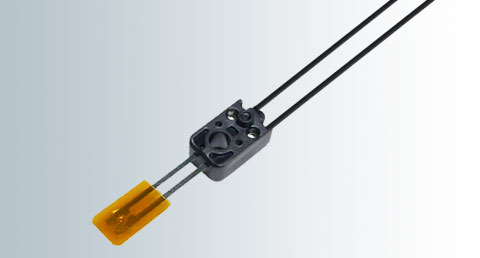

Thermistor Sensor
TSP1
Light touch solution with low cost and high durability
Cost is compared to other Shibaura soft contact type sensors
Sensing part: polyimide tape
Wire: cross-linked PE
Other options available
Features
- A light touch (approx. 1.2g at a push-in depth of 1 mm) sensing solution for fuser rollers
- Basic and standard contact type available at low cost
- Soft contact reduces damage on rollers
| Applications | Fuser rollers for copying machines, printers and multi-function printers (surface) |
|---|---|
| Operating temperature | -20 to +200℃ (at the sensing part) Please consult us when higher temperatures are required. |
| Thermal time constant | τ ≤ 2 sec. (push-in depth of 1mm on φ25 roller) |
| Dissipation constant | δ ≒ 0.4mW/℃ |
| Withstand voltage | 1000VAC for 1 min. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | R200 = 1kΩ |
| B constant | B100/200 = 4537K |
* Values in the above table are for reference only.
* Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
