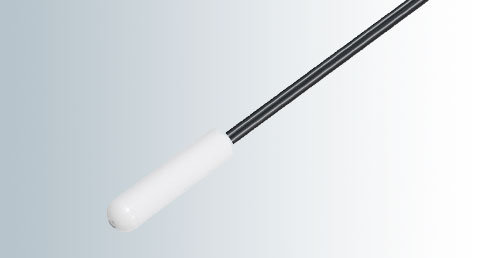

Thermistor Sensor
CE1
Specialized for refrigerators
Sensing part: plastics
Wire: PVC parallel
Features
- Proven results in low temperature ambient measurements

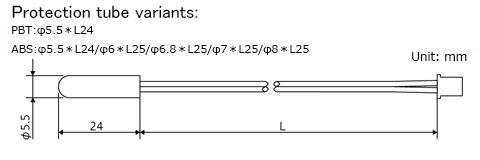

- Many variants of the ABS protection tube are available
| Applications | Refrigerator chambers (ambient) |
|---|---|
| Operating temperature | -30 to +80℃ |
| Thermal time constant | τ ≒ 20 sec. (in stirred water) |
| Dissipation constant | δ ≒ 2.5mW/℃ |
| Withstand voltage | 1200VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | Optional |
| B constant | Optional |
*The values in the table are for reference only.
*Unless otherwise stated, the thermal time constant and heat dissipation constant are measured in static air.
